Description of products

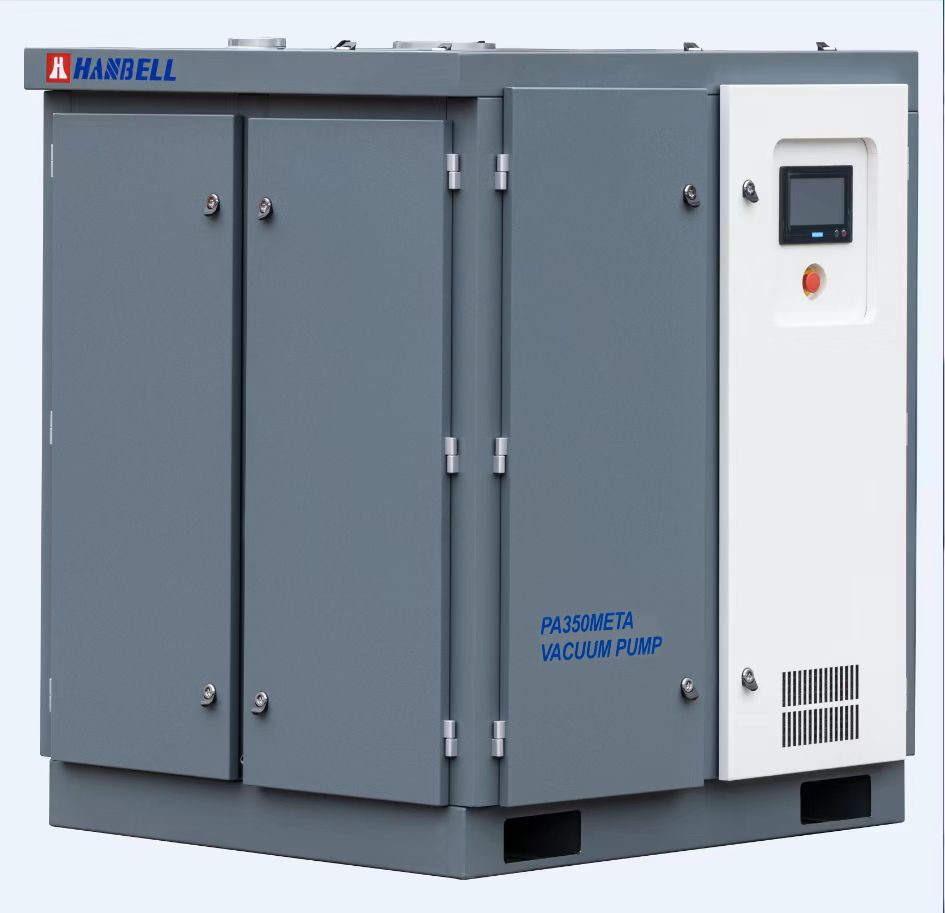

PA META series vacuum pump is energy-saving and environmental.
Any central vacuum system engine is a vacuum pump. In order to meet the changing vacuum requirements in the production process, the vacuum pump is frequently started and stopped. This not only increases the probability of failure, but also causes a waste of resources. To solve this problem, Hanbell introduced the permanent magnet variable frequency drive technology. Through the feed- back of the inlet pressure sensor, the computer controller carried out parameter analysis on the pressure fluctuation trend and other operating states, gave speed control instructions to the converter, responded quickly, and accurately maintained the inlet vacuum pressure, so that the pumping speed and energy consumption of the vacuum pump were in line with the actual needs of users. PA META series screw vacuum pump only provide what the system needs.
PA META series vacuum pump is especially suitable for plastic, glass, bottling, canning, wood processing, package, printing, paper-making and so on. PA META series vacuum pump has higher moisture resistance and can save 50% energy on average.
Product Feature
● High efficiency
Due to the variable frequency drive control, PA META can pro- vide the required flow without excessive, avoiding the waste of energy. New type screw line design improves performance.
● loT system
PA META series vacuum pump has function of remote start and stop, remote monitoring, linkage and so on. With the Internet of Things system, you can clearly control the working state of pump at home.
● High reliability

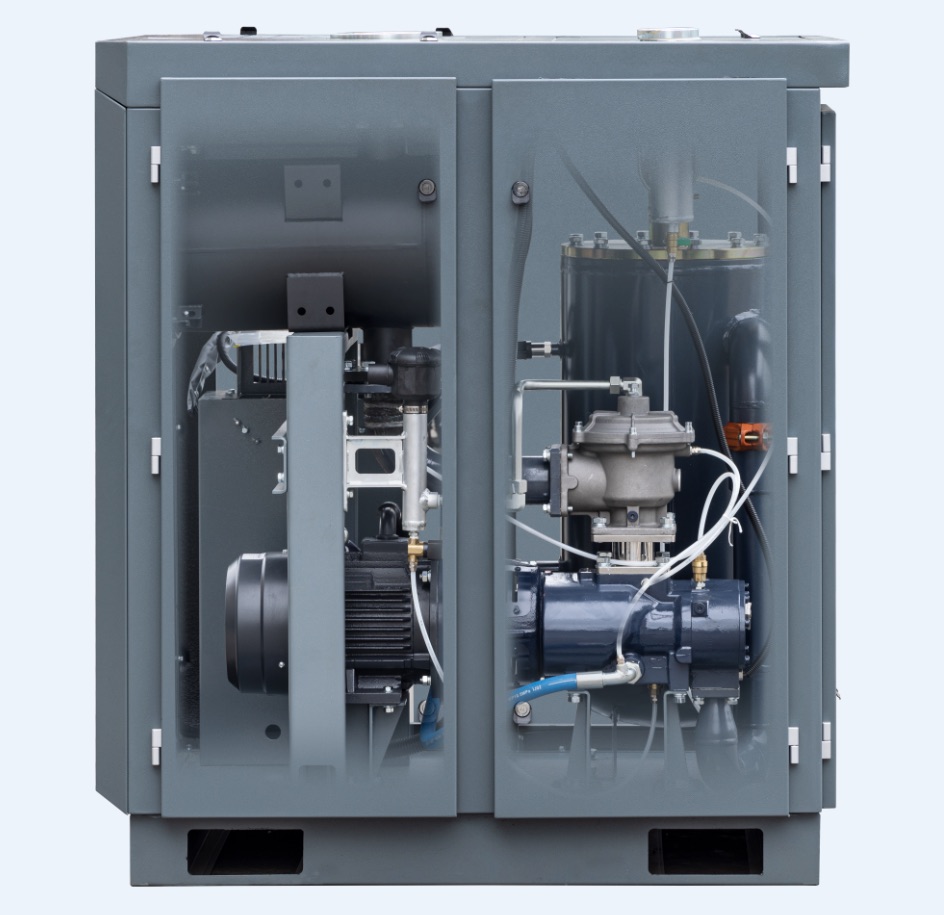

Advanced airflow steering technology ensures ideal cooling and extended service life for electronic components, as well as a more complete exchange of heat and cold. The design of the oil and gas circuit of the inner metal pipe makes the lubrication cooling oil circuit run at a higher speed and take away the heat of the main engine in a more timely manner to ensure that the main engine runs at the optimal temperature. In addition, the service life of the screw rotor is significantly longer than that of the blade, and the maintenance interval is greatly extended.
● Sustainable productivity
High speed cyclone is adopted for separation with high effi- ciency and better separation performance. Multi -channel pressure detection, stronger protection function. Automatic water filter can effectively treat the condensate under vacuum condition. In addition, the noise level is reduced by two levels compared with traditional technologies, due to silent compo- nents, case and VSD.
● Easy and quick installation
PA META series vacuum pump a plug and play vacuum solution, including controller, electrical room, vacuum body and external sheet metal, the overall smooth ;operation, quiet, energy saving, environmental protection.
