Features:

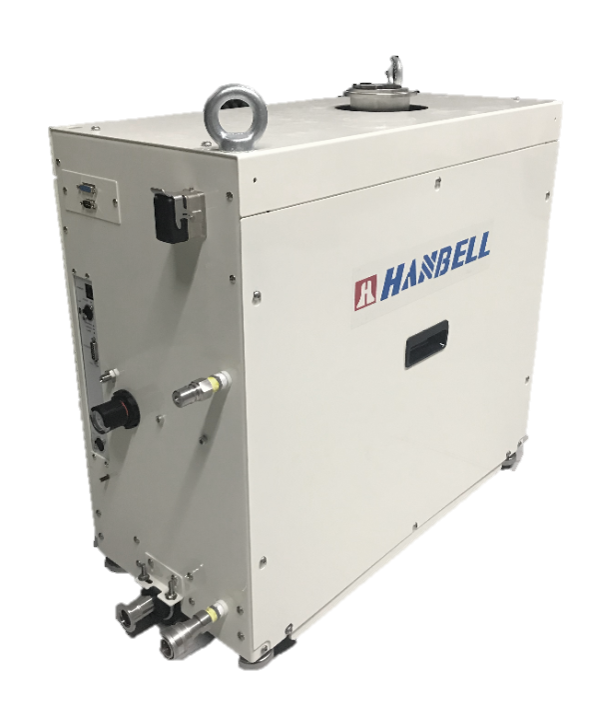

Environmental friendly new vacuum pump
Small size, low energy consumption, great cost reduction
Energy saving pump suitable for medium severe process
Application
Load Lock、Etch、Transfer、Ashing、Metrology、Litho、PVD、Implant
Technical Parameter | |||
Hanbell IPM | 100 | 600 | |
DP size | m3/h | 100 | 100 |
BP size | m3/h | / | 600 |
Peak speed | m3/h | 100 | 600 |
Untimate Vac | mTorr | 7.5 | 3.75 |
System power at Ult. | kw | 0.7 | 1 |
Dimension-L | mm | 720 | 720 |
Dimension-W | mm | 340 | 340 |
Dimension-H | mm | 465 | 700 |
Noise | dB(A) | 65 | 65 |
Weight | KG | 145 | 200 |
Inlet connection | ISO | 63 | 80 |
Oulter connection | NW | 25 | 25 |
