Features

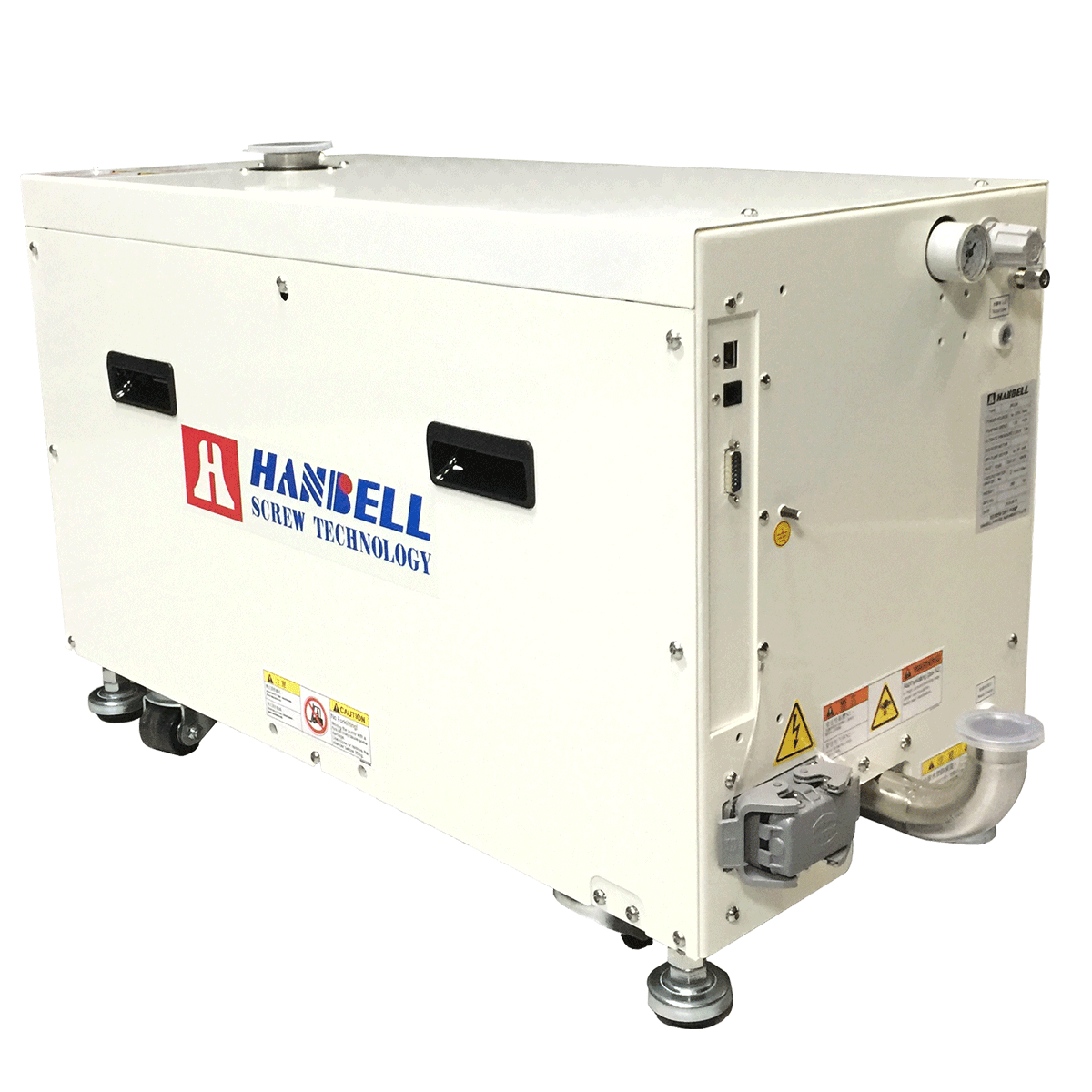

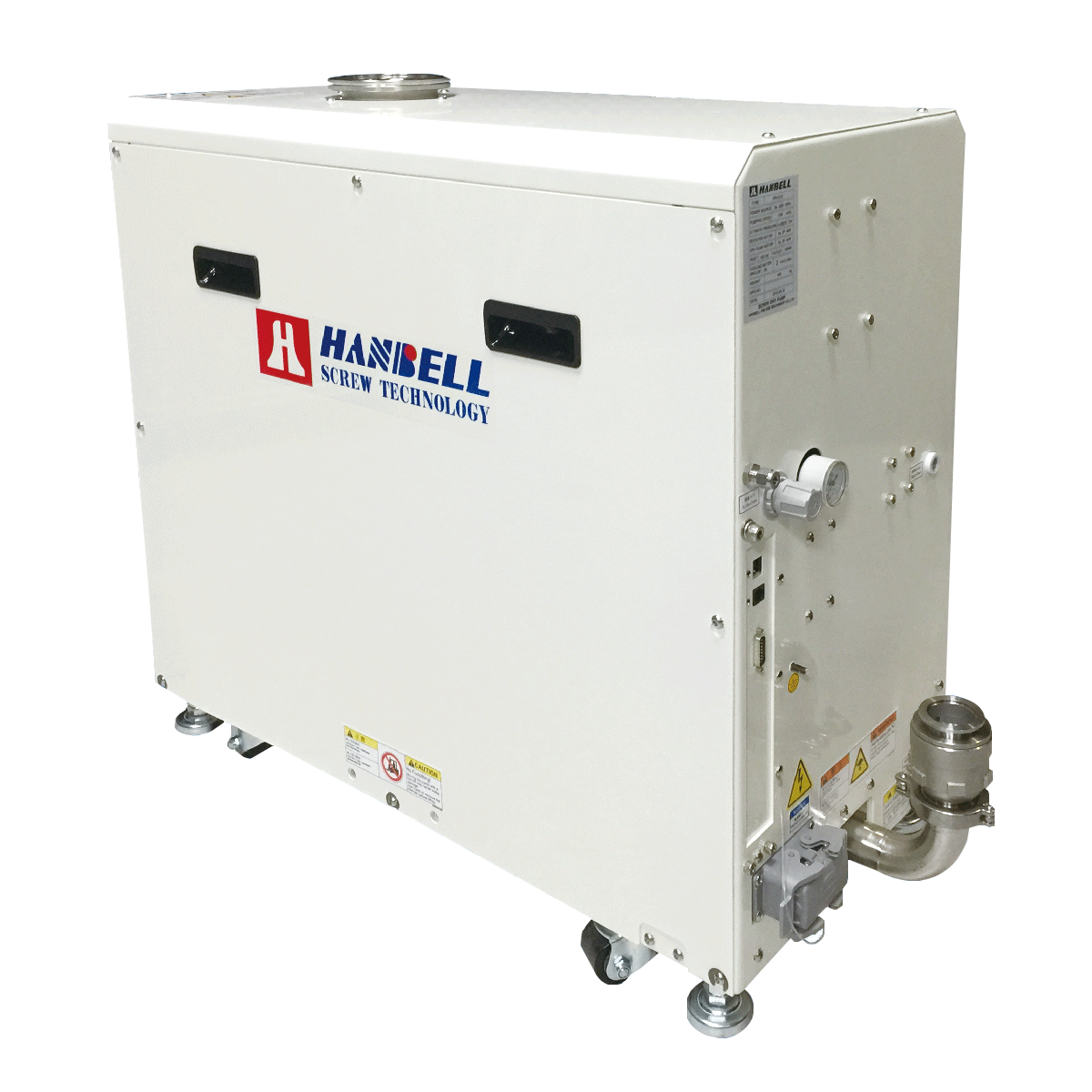

The iPH series screw pump provides great capability for wide application especially in harsh process. The excellent pump performance comes from shortest gas path of rotors and brilliant rotor profile sealing design.
Designed by HANBELL and made in Taiwan or Shanghai
25% power saving than previous version and Green mode equipped
Thermal control solution to avoid cold spot inside of pump
Optimized pimp size, easy for plug and play
Applications:
Etch、Implant、HDP-CVD、SACVD、MOCVD、PECVD、LPCVD、ALD
Technical Data | |||||||||
Product | Unit | iPH100 | Iph200 | iPH610 | iPH1210 | Iph1210h | iPH1220 | iPH1810 | iPH1820 |
Dry pump | m3/h | 120 | 200 | 120 | 120 | 120 | 200 | 120 | 200 |
Booster | m3/h | / | / | 600 | 1200 | 1200 | 1200 | 1800 | 1800 |
Max. Pumping Speed | m3/h | 120 | 200 | 700 | 1100 | 1100 | 1250 | 1800 | 1850 |
Ultimate Pressure | Torr | 7.5x10-3 | 7.5x10-3 | 7.5x10-4 | 7.5x10-4 | 7.5x10-4 | 7.5x10-4 | 7.5x10-4 | 7.5x10-4 |
System Power at Ult. | Kw | 2.1 | 3.5 | 2.6 | 3 | 3.2 | 4.5 | 3.9 | 4.7 |
Inlet | ISO | 63 | 63 | 100 | 100 | 100 | 100 | 160 | 160 |
Outlet | NW | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
Dimension(mm) | L | 830 | 830 | 830 | 830 | 830 | 830 | 830 | 830 |
W | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
H | 526 | 526 | 780 | 780 | 780 | 780 | 830 | 830 | |
Weight | Kg | 280 | 300 | 450 | 455 | 460 | 470 | 515 | 530 |
