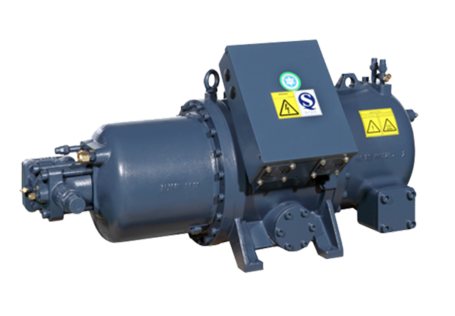

RC2-G&T high temperature heat pump

Newly launched HANBELL RC2-G/T series semi hermetic screw compressor was developed based on RC2 series compressor. The new compressor suitable for high Saturated Discharge Temperature and the newly designed high efficiency motor make the operation range of RC2-G/T series much wider.

RC2-G series belong to high condensing temperature model which is designed for the low waste heat recovery requirement and the R134a refrigerant system, the limit Saturated Discharge Temperature of this new type can reach up to 85℃.

RC2-T series belong to ultra-high condensing temperature model which is designed for the high waste heat recovery requirement and the R245fa refrigerant system. The limit Saturated Discharge Temperature of this new type can break the limit of traditional compressor and reach up to 125℃, thus steam can be produced directly.

Features
RC2-G Specification
RC2-T Specification
Catalogue & Technical Manual
Drawing

 The RC2-G/T series compressor consists of 20 models, with condensation temperatures ranging from 75 ° C to 125 ° C

According to the operating conditions of R134a and R245fa, the most suitable high efficiency motor is designed

 Long life bearing is used to meet ultimate operation conditions

Adopt floating medium pressure (economizer return gas pressure) design, so that the compressor can use the economizer no matter it is under full load or partial load

Applicable to R134a, R245fa and other environmental refrigerants

  A new protection module INT69 HBY Diagnose is equipped as an standard


Model

Compressor

Motor

Strength test (air pressure)

Weight

noise

Discharge volume

(50Hz)

Rotation speed（50Hz）

Vi valve

Capacity control (%)

Type

Start model

Voltage（50Hz)

Protection

m3/h

RPM

Step type

Stepless type

V

Kg/cm2g

Kg

dB

RC2-100G

98

2950

2.2
3.0
3.5

33，66,

100

33~100

3 phase 2 pole squirrel cage induction motor

Y-△

380

PTC+   PT100

38

285

73

RC2-230G

230

25，50，75，100

25~100

577

79

RC2-260G

257

592

79

RC2-410G

407

779

83

RC2-470G

471

825

84

RC2-710G

713

1168

87

RC2-790G

791

1199

87


Model

Compressor

Motor

Strength test

Weight

Noise

Discharge volume

(50Hz)

Rotation speed（50Hz）

Vi valve

Capacity control (%)

type

Start model

Voltage（50Hz)

Protection

m3/h

RPM

step

stepless

V

Kg/cm2G

Kg

dB

RC-2-200T

193

2950

2.2
3.0
3.5

25
50
75
100

25~100

3 phase 2 pole squirrel cage induction motor

Y-△

380

PTC+  PT100

35

425

78.4

RC-2-230T

230

535

79

RC-2-260T

257

560

79.2

RC-2-300T

293

600

79.6

RC-2-310T

308

580

79.9

RC-2-340T

339

620

80.4

RC-2-370T

366

640

81.5

RC-2-410T

407

740

83.1

RC-2-470T

471

810

84.2

RC-2-510T

508

780

85.2

RC-2-550T

549

850

86.3

RC-2-580T

583

840

86.6

RC-2-620T

619

880

86.9

RC-2-710T

713

1099

87.1

RC-2-790T

791

1180

87.3

RC-2-830T

825

1215

87.6

RC-2-930T

929

1240

88.4
