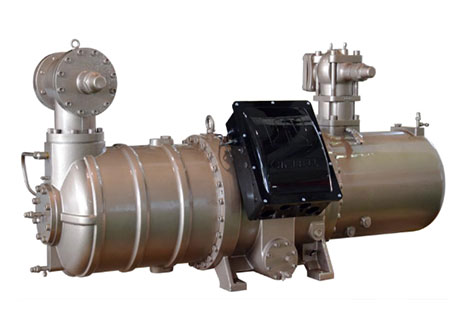

RC2-PLUS single-stage low ambient temperature air source heat pump

The RC2-PLUS single-stage low ambient temperature air source compressor launched by Hanbell is developed for cold areas with heating application demands. At present, it has 6 models. Compared with RC2 series, it not only has similar appearance, but also has the characteristics of high performance and large displacement.

Download

Features

Model Specifications

Catalogue & Technical Manual

Drawing

The lowest suction saturation temperature can reach - 40℃, which is suitable for heating application of air source unit in severe cold environment；

With high oil separation efficiency, the oil discharge rate of compressor reduced

No external oil cooler to simplify the system application

Large single unit heating capacity, which is suitable for central heating projects and reduces the initial investment and space required to install the machine

Double electronic expansion valve is used to precisely control the temperature of the compressor, and the performance of the compressor is improved by about 10% compared to screw compressors during hearting process under the low ambient temperature standard working conditions.

RC2-PLUS Series
Model	Compressor					Motor					Lubricant filling	Weight	Strength test
	Air flow 50HZ m3/h	Rotor rotation speed 50Hz	VI value	Capacity regulation		Starting type	Type	Protection device	Voltage V/50Hz	Insulation grade	L	Kg	Bar
				Step	Stepless
RC2-510PLUS	508	2950r/min	3.5	25,50, 75,100	25~100	Y-∆	3 phase 2 pole squirrel-cage inductor motor	PTC +NTC	380	Level F	25	795	35
RC2-550PLUS	549										28	865
RC2-620PLUS	619										28	895
RC2-710PLUS	713										31	1179
RC2-830PLUS	825										31	1228
RC2-930PLUS	929										31	1253
