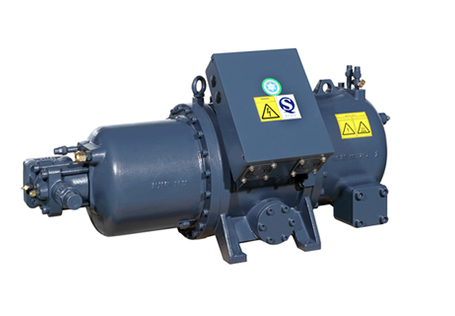

RC2-D series compressor

RC2-D series single-stage screw compressors are developed for refrigeration market. This series of compressors are suitable for various refrigeration application scenarios including high, medium and low temperature. Compared with the previous generation products, RC2-D series products have higher reliability and operation efficiency.


Features
Model Specification
Catalogue & Technical Manual

Equipped with economizer stop valve to optimize the design of economizer interface and improve the performance of the system;





Motor temperature sensor and throttle mechanism to reduce the influence of motor liquid injection on system performance;





Optimize the motor cooling channel design, comprehensively reduce the motor temperature and improve the product safety margin;





Upgrade the capacity adjustment mechanism and use more superior sealing materials to further enhance the stability of capacity adjustment;





The whole series of products are subdivided into M series and L series, of which M series can meet the application needs of high temperature refrigeration market, and L series can meet the application needs of medium and low temperature refrigeration market.


Model

Compressor

Motor

Lubricant

volume

Strength test

Lubrication type


Displacement   (50Hz)

Rotation speed

Capacity control

Type

Start model

Voltage

Protection device



Step

Stepless


m3/h

rpm

%

%

L

Bar


RC2-100D

98

2950

33

66

100

33~100

3-phase   2-pole AC asynchronous motor

Y-

380V50Hz

PTC

+

NTC

7

35

Pressure   differential


RC2-140D

137

7


RC2-180D

180

7


RC2-200D

193

25

50

75

100

25~100

8


RC2-230D

230

14


RC2-260D

257

14


RC2-300D

293

16


RC2-310D

308

14


RC2-340D

339

16


RC2-370D

366

16


RC2-410D

407

15


RC2-470D

471

18


RC2-510D

508

20


RC2-550D

549

23


RC2-580D

583

20


RC2-620D

619

23


RC2-710D

713

28


RC2-790D

791

28


RC2-830D

825

28


RC2-930D

929

28
